Recall that in the string method, one seeks to find a mapping function

\[ \varphi(\alpha):[0,1]\to \mathbb{R}^d, \quad \varphi(0)= x_-, \quad \varphi(1) = x_+,\]

where $x_\pm$ are initial and terminal points which often (but not always) correspond to local minima on the energy landscape. While many such $\varphi$ are possible, the string method identifies a minimum energy path accomplishing this transition. Here, we implement the (simplified and improved) string method, as described in E, Ren, and Vanden-Eijnden (2007).

Initialize String

To apply the string method, we must first initialize the string, which is to say, specifcy sequence of images joining two (approximate) minima must be given. $\{varphi^{(i)}\}$, where $\varphi^{(i)} \approx \varphi(\alpha_i)$. This is anticipated to be a structure of the type Vector{Vector{Float64}} where the interior Vector{Float64} structure reflect the points residing in $\mathbb{R}^d$.

A convenience function is provided that constructs a linear interpolant,

An example of running such a code is:

using StringMethod

x_init = [1.5, -0.5];
x_final = [-0.5, 1.0];
n_images = 11;

U = linear_string(x_init, x_final, n_images)

11-element Vector{Vector{Float64}}:
 [1.5, -0.5]
 [1.3, -0.35]
 [1.1, -0.2]
 [0.8999999999999998, -0.04999999999999999]
 [0.7, 0.10000000000000003]
 [0.5, 0.25]
 [0.3000000000000001, 0.39999999999999997]
 [0.10000000000000009, 0.5499999999999999]
 [-0.10000000000000009, 0.7000000000000001]
 [-0.30000000000000004, 0.8500000000000001]
 [-0.5, 1.0]

Construct String Method Solver

There are several ingredients that go into running the string method:

• Time stepping scheme and Δt, the time step
• The reparamertization scheme
• A distance function used by the reparameterization and also for checking convergence

These are invoked with the structure:

Time Stepping

Time stepping is handled by the in place integrate!(x, ∇V, Δt) which advances the ODE $\dot{x} = -\nabla V(x)$ by time $\Delta t$. There are two built in options, though others can be added:

Reparametrization and Distance

The string is reparamertrized with reparameterize!(U, dist, pin). This maps the current set of images $\{\varphi^{(i)}_\ast\}$ to a new set $\{\varphi^{(i)}\}$ such that, with respect to the dist function, the images are uniformly distributed, i.e., after the function is applied

\[\mathrm{dist}(\varphi^{(i)}, \varphi^{(i+1)}) = \text{Constant in $i$}\]

Currently, the only version implemented makes use of cubic splines as part of the Dierckx package:

The boolean pin argument refers to whether the initial and final images on the string should be treated as pinned (true) or not (false).

The distnace function, dist(x,y) should be suitable for the problem.

Set Solver Options

In addition to the string method options, we also have the numerical options associated with the number of iterations to perform, stopping tolerance, etc. These are set by constructing:

Solve

Having set everything, we execute

Example

The following example applies the string method to the Muller (sometimes Muller-Brown) potential, a 2D energy landscape often used to demonstrate algorithms. Muller-Brown is coded in the TestLandscapes.jl package.

using Test
using LinearAlgebra
using StringMethod
using TestLandscapes
using ForwardDiff
using Printf
using Plots

# set potential and get its gradient
V = x -> Muller(x);
∇V = x -> ForwardDiff.gradient(V, x);

U0 = linear_string([0, -0.25], [0, 1.5], 15)

Δt = 1e-4;
dist = (u, v) -> norm(u - v, 2);
pin = false;

string = SimplifiedString(∇V, stepRK4!, spline_reparametrize!, dist, pin, Δt);
opts = StringOptions(verbose=false, save_trajectory=true)

# solve
U_trajectory = simplified_string(U0, string, options=opts);

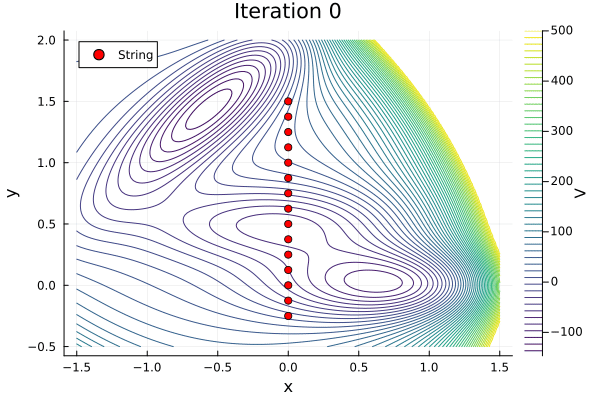

# visualize
xx =LinRange(-1.5, 1.5,150);
yy = LinRange(-0.5, 2.0,150);
V_vals = [V([x,y]) for y in yy, x in xx];

anim =@animate for i in 1:10:length(U_trajectory)
    plt = contour(xx,yy,min.(V_vals,500),
        levels = LinRange(-150,500,50),color=:viridis,colorbar_title="V")
    scatter!(plt, [x_[1] for x_ in U_trajectory[i]],
        [x_[2] for x_ in U_trajectory[i]],color=:red, label="String")
    xlabel!("x")
    ylabel!("y")

    title!(plt, @sprintf("Iteration %d", i-1))
end
gif(anim, fps=15)
